SPECIFICATIONS

Application: Caravan, Motorhome, Trailer, Modified car

Brand Name: RV PARTS

Car Make: Caravan, Motorhome, Trailer, Modified car

Certification: E13

Color: Black, White, Transparent gray

Condition: New

Fitting thickness: 25-35mm, 35-42mm, 42-48mm

Function: anti-UV Window

Installation: Screw

Material: Aluminum Alloy

Model Number: RV17RW

OE NO.: 0

Order size/Cut hole size: 31 sizes for Choosing

Place of Origin: Anhui, China

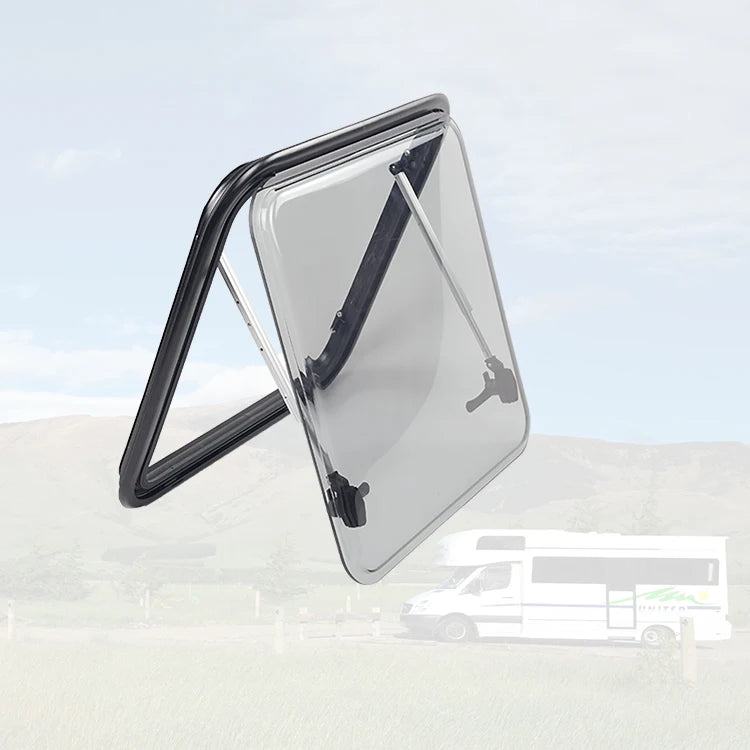

Product name: Rounded Corner Window

Purpose: for retrofit/upgrade

Reference NO.: 111569,0986046270,9046270,9090356,12046270,2542753A,28-4836,8EL738183-001,636194,SG14B017R,25422609A

Size: 900*600mm

Size (Width*Height): 900*600mm

Type: Side Window

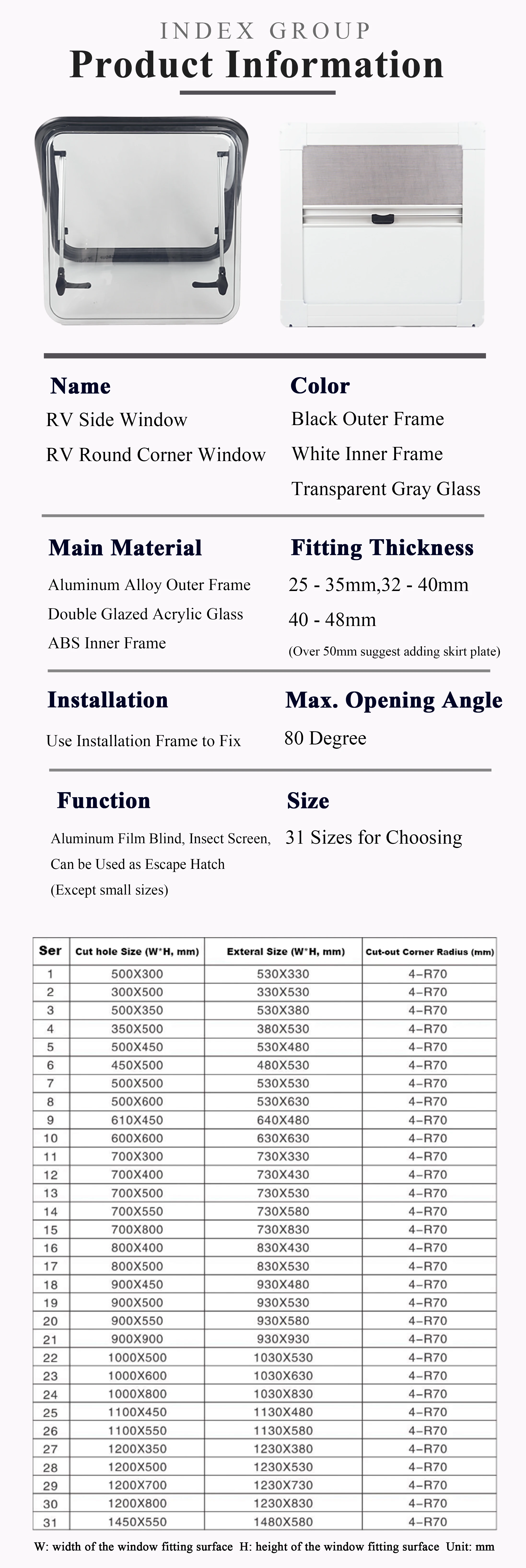

Products Information

RV17RW RV Window Product Parameters
Product Name	RV Round Angle Aluminum Alloy Window
Lead Time	7 -15 Working Days
Product Warranty	1 Year
Standard Size	31 Sizes for Choosing ( Cut-hole size, W*H, mm )
Customized Size	Supported ( MOQ: 20+ sets)
Color	Black Outer Frame, White Inner Frame, Transparent Gray Glass

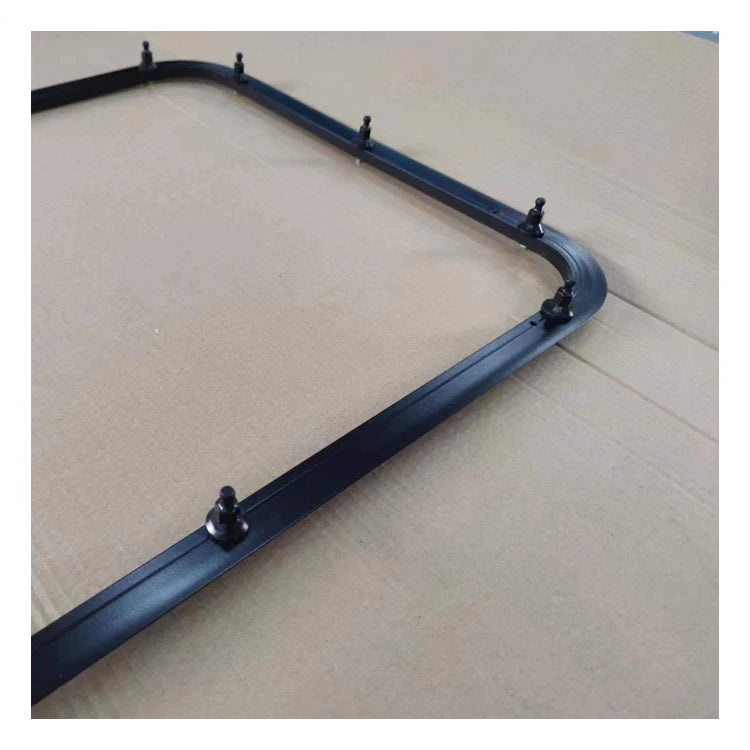

Material Of Outer Frame	Aluminum Alloy
Material Of Inner Frame	ABS

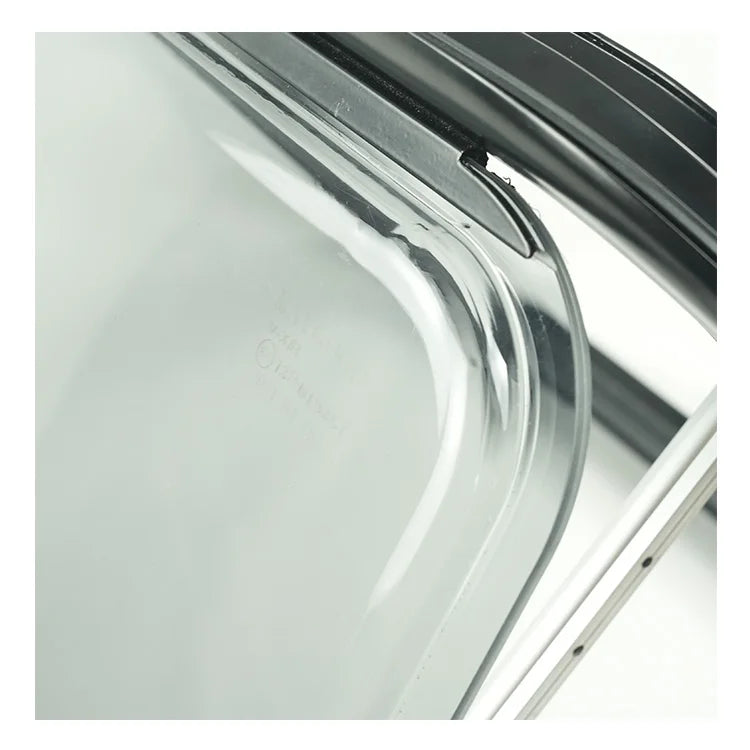

Material Of Glass	Double Glazed Anti-UV Acrylic Glass
Fitting Thickness	25-35, 35-42, 42-48mm ( other thickness can be customized, over 50mm suggest adding skirt plate)
Maximum Opening Angle	80°
Installation	Use Screws to Fix
Cut-hole Corner Radius	4-R70
Function	Open and close, have fly net and sun blind with good ventilation, insulation, privacy and waterproof performance.
Optional Accessories	3 Types of Support Arm, 3 Types of Inner Frame
Certificate	E13 Certification

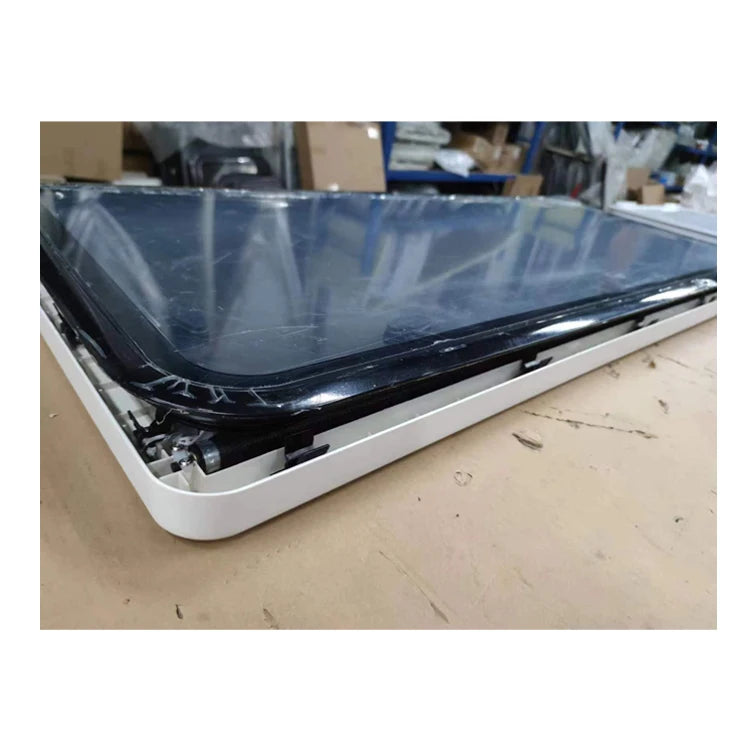

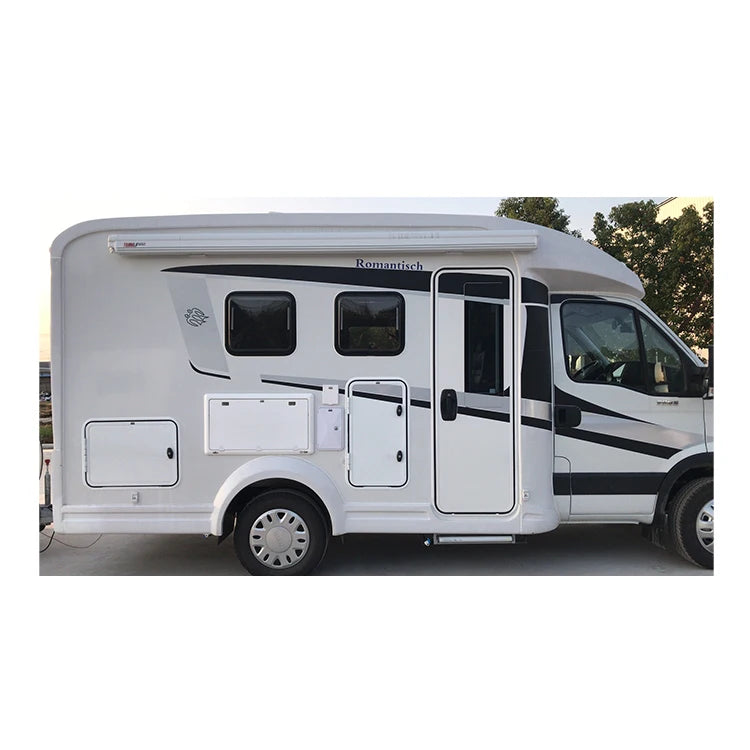

Product Display

Packing and Delivery

Company Profile

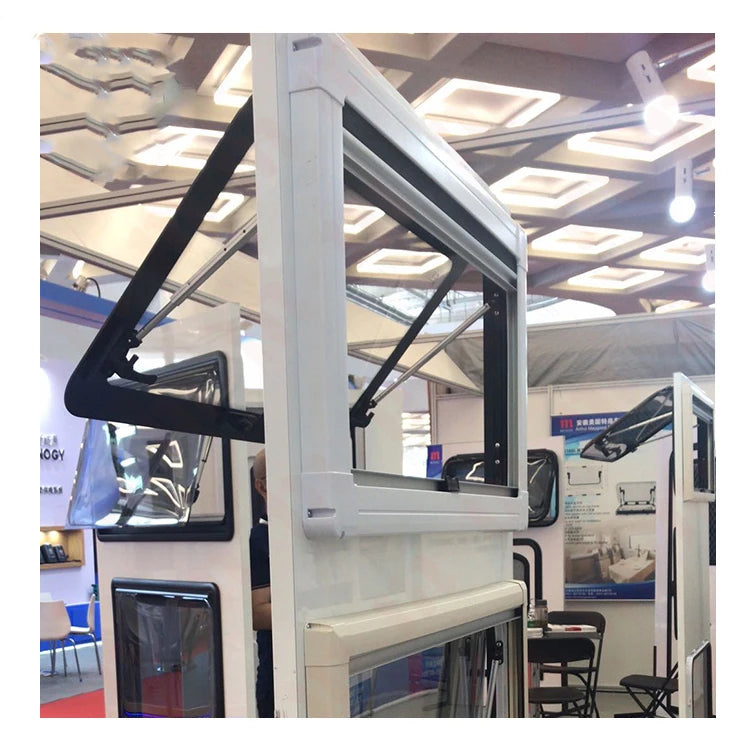

Exhibition and Customers

Other Products

FAQ

Q: What are the conventional transportation methods of the product?

A: Intermodal warehouse to door, door to door.

Q: What is the main content of E13 certificate authentication?
A: The main content of the certification is our double acrylic glass. The focus of the certification is not the size of the double acrylic, but the material, surface and color of the double acrylic, so it is suitable for most product certification.

Q: Why are our products competitively priced?
A: Because we are the second largest manufacturer focusing on RV parts in China, we have cooperated with well-known enterprises Dometic and Hymer for many years, and have a complete industrial chain and the most stable quality products.

Q: Why can our products be exported to many countries?
A: Having a sound certification, 16-year import and export experience, we not only currently occupy most of the Brazilian market, but also the main European and American markets. With a stable customer source, we’re aiming at expanding to other countries.

Q: What are our current products?
A: Our main products are RV entry door, luggage door, picnic table, window, water tank, step, air vent, water shower, roof hatch, skylight, ladder, table leg, door lock, awning and LED light. We definitely can provide more related products in RV industry if you're interested in.
