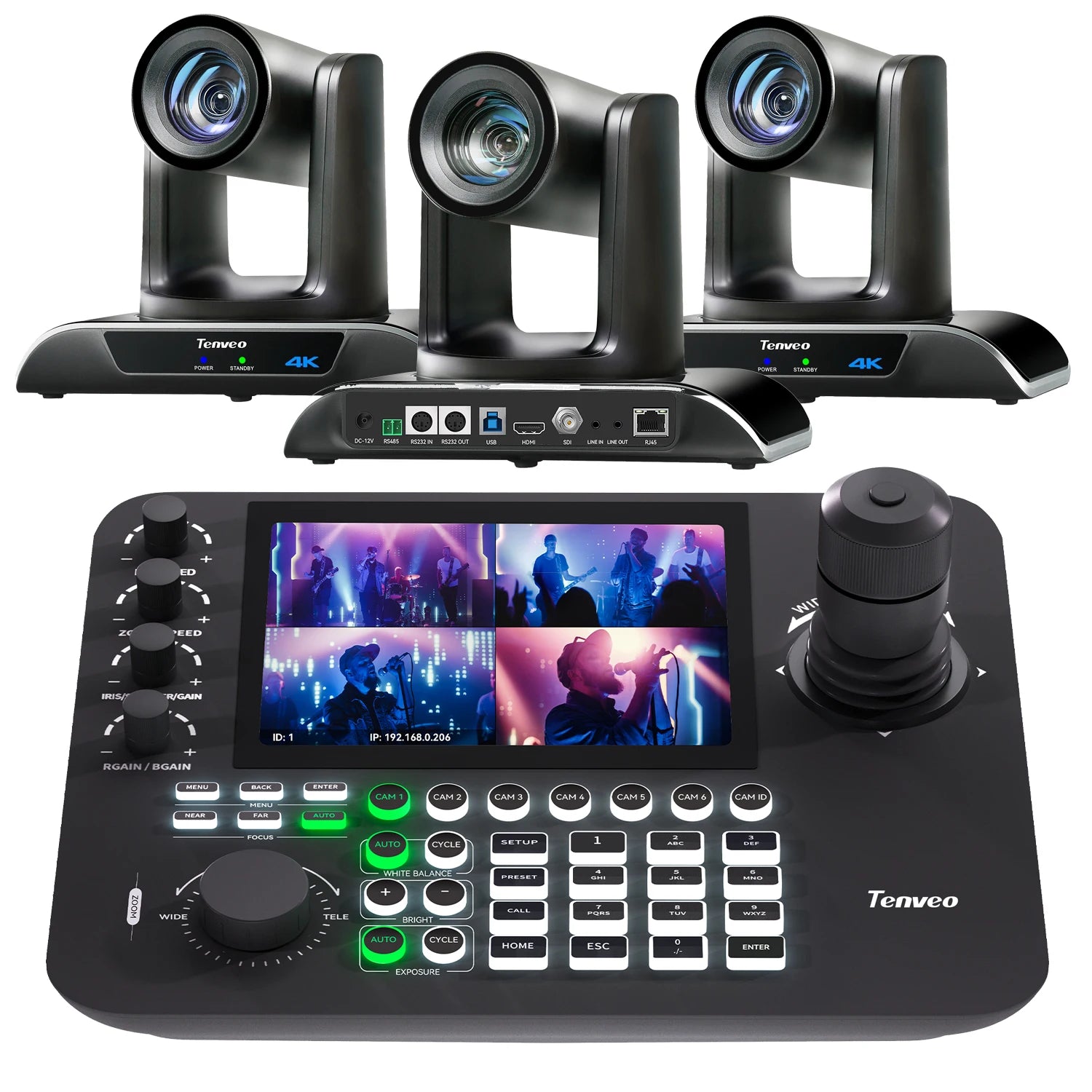

3Pcs 30X Zoom 4K PTZ Conference Camera AI Auto Tracking USB+HDMI+SDI+LAN POE and KB300PRO IP PTZ Camera Joystick Controller

Name: 3Pcs 30X Zoom 4K PTZ Conference Camera AI Auto Tracking USB+HDMI+SDI+LAN POE and KB300PRO IP PTZ Camera Joystick Controller
Brand: MundozaPet
SKU: 1601570216361-Default Title
Price: 999.0 USD
Availability: InStock

10 people are looking at this!

$999.00

~~$999.00~~ $999.00

Save 0% Sold out

Instant download

SPECIFICATIONS

Brand Name: Tenveo

Digital Zoom: 8x

Effective Pixels: 2.07MP

Horizontal Angle: 69.5° ~ 2.63°

Model Number: VHD630A-4K+KB300PRO

Network Protocol: SRT,TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP,

Optical Zoom: 30x

Place of Origin: Guangdong, China

Power Consumption: 12W

Power Supply: DC 12V/2A

Sensor: 1/2.8''

Simultaneous Interpretation: NO

Type: Video Conference System

Video Output: USB 3.0, HDMI, RJ45, SDI

Video Signals: 4K, 1080P60, 59.94, 50, 30, 29.97, 25, 1080I60, 59.94, 50, 30, 29.97

Product Description

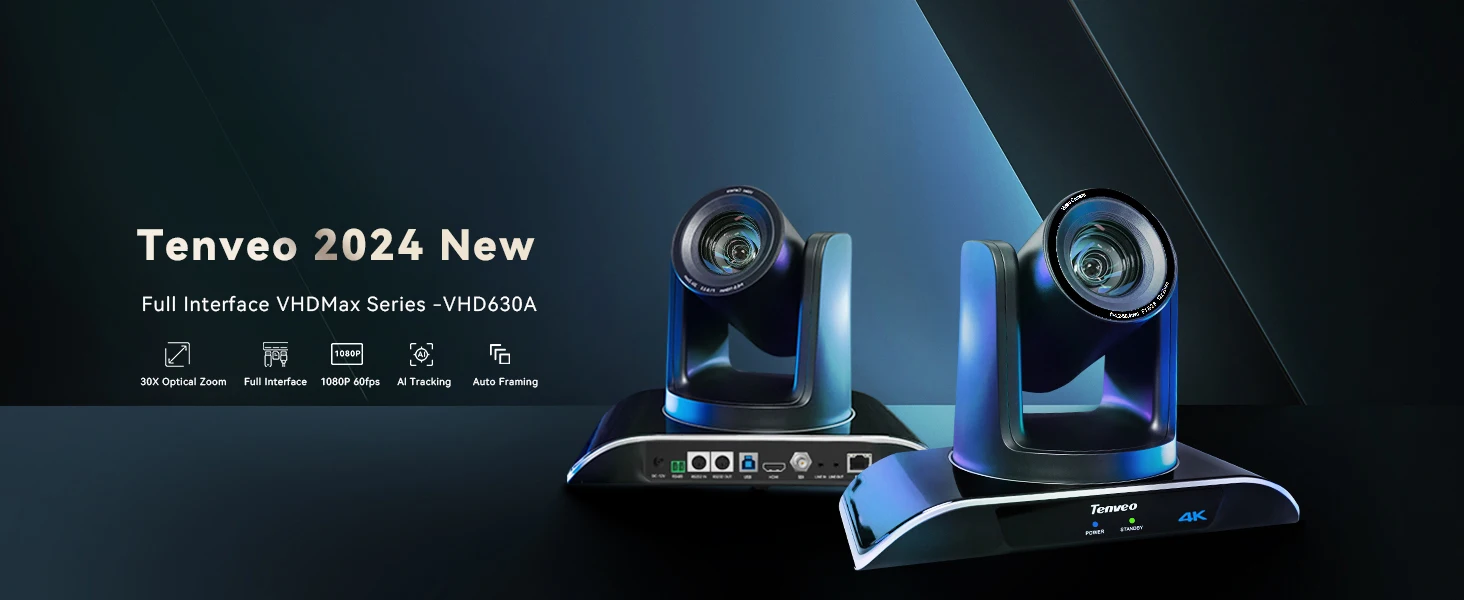

VHDMAX Series 4K 30x Optical Zoom+8x Digital Zoom

The PTZ Live Streaming Camera is equipped with a 30x Optical Zoom+8x Digital Zoom and 79.5°wide angle lens which is reach up to 4K@30FPS Ultra HD video output. Equipped with a 1/2.8" CMOS Sensor, combined with 2D&3D Digital Noise Reduction technology and algorithm.

Tenveo VHDMAX Series 30x Optical Zoom with AI Auto Tracking PTZ Conference Camera and USB+HDMI+SDI+LAN Output IP Live Streaming POE Support for
Church Education

30X Optical Zoom can zoom in with the length of 25M(86ft)

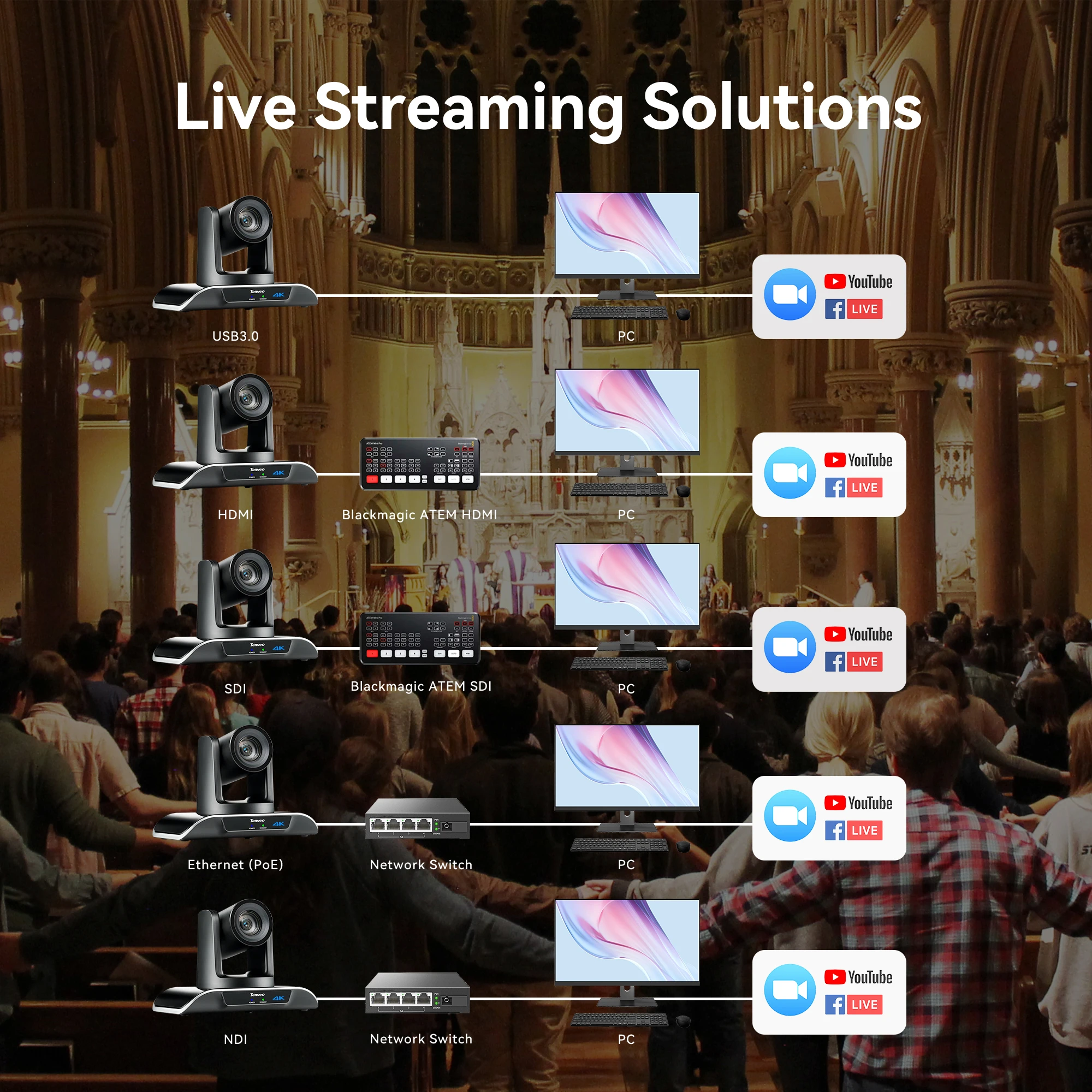

Multiple Interfaces

Equipped with 3G-SDI, HDMI, USB3.0, and RJ45 interfaces, this PTZ live streaming camera provides flexibility and versatility when it comes to connecting to different devices and platforms. PoE(802.3af) supported. Meanwhile, LINE IN and LINE OUT interfaces can be connected to audio devices, supporting simultaneous audio and video streaming(audio device is not included). This makes it compatible with a wide range of devices and platforms, allowing you to meet all your live streaming needs.

AI Auto tracking PTZ Camera

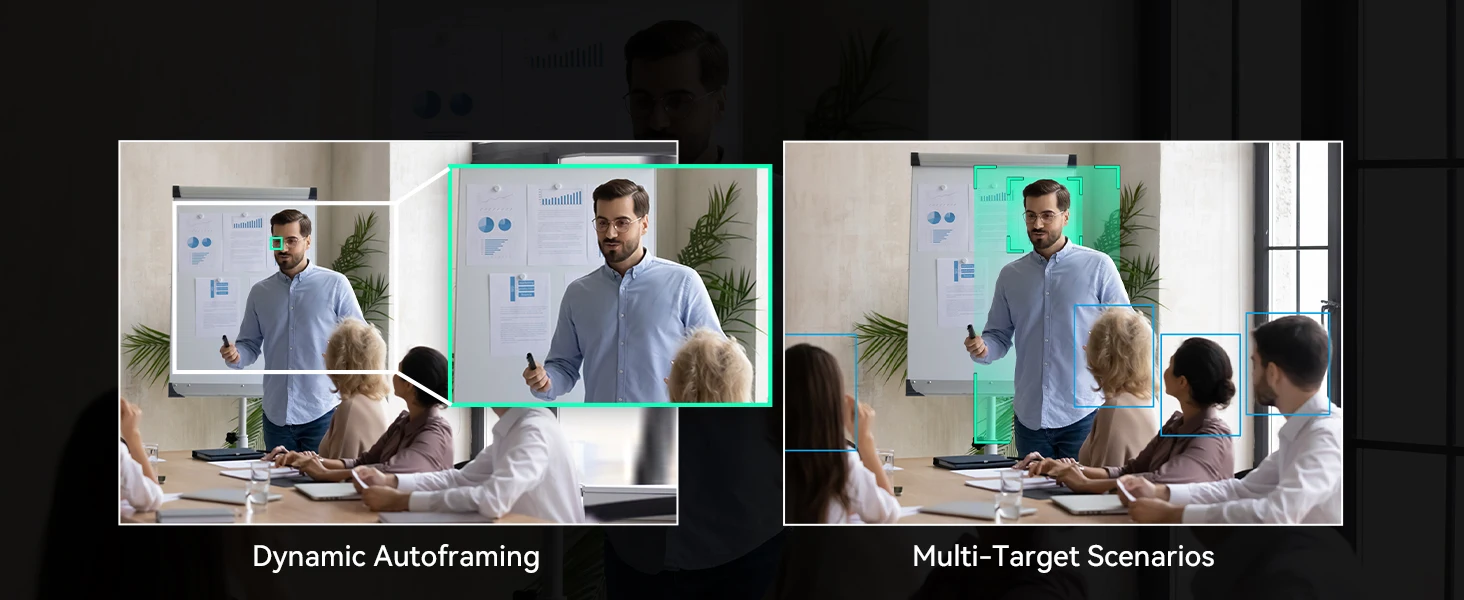

The AI PTZ Camera with Auto-Tracking supports human shape tracking based on advanced AI algorithm. Through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection. This makes it ideal for capturing live events, such as church services worship events, sporting events, live concerts, video production or large conferences.

POE Support

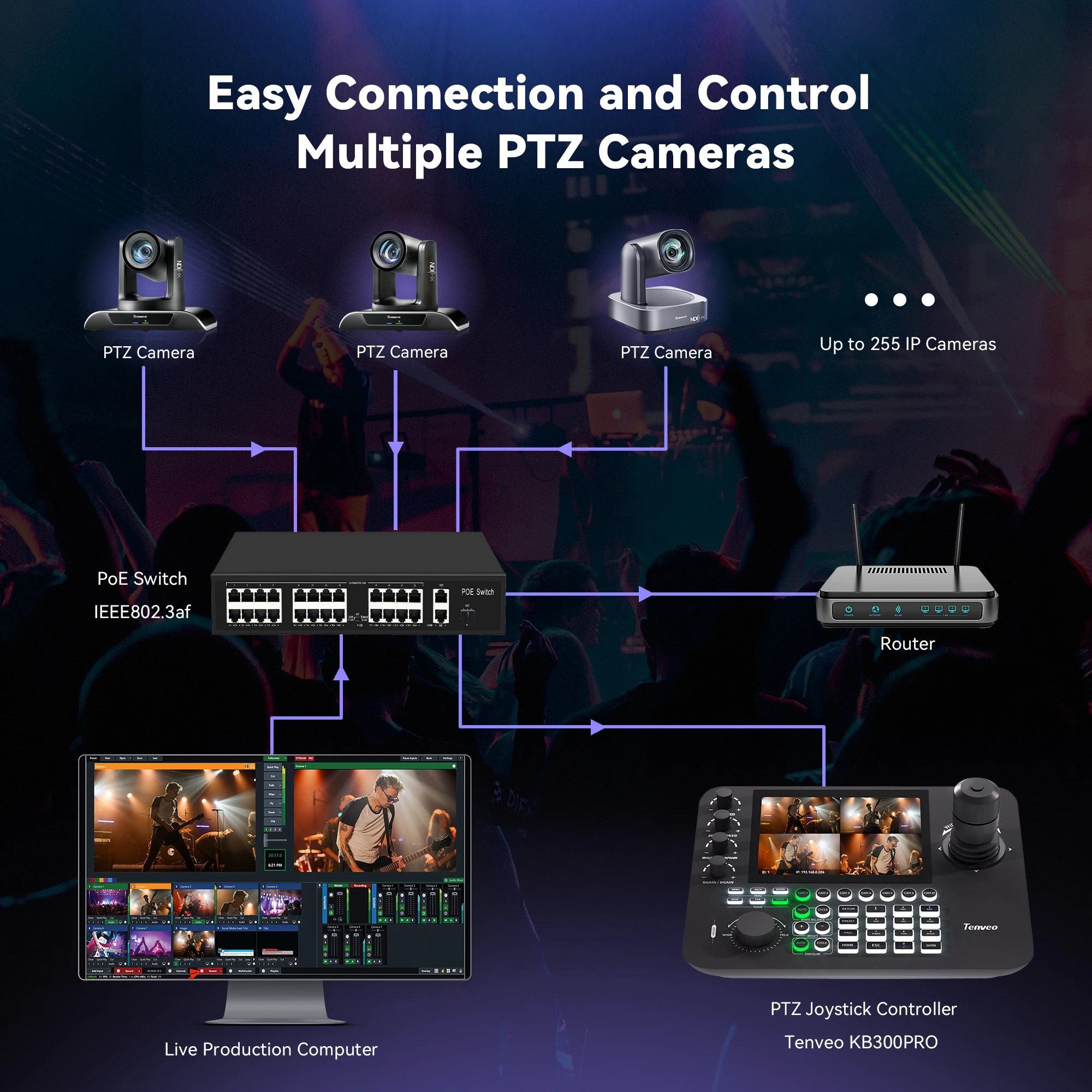

Support POE, you can connect a POE Switch to power on the camera without the power supply.

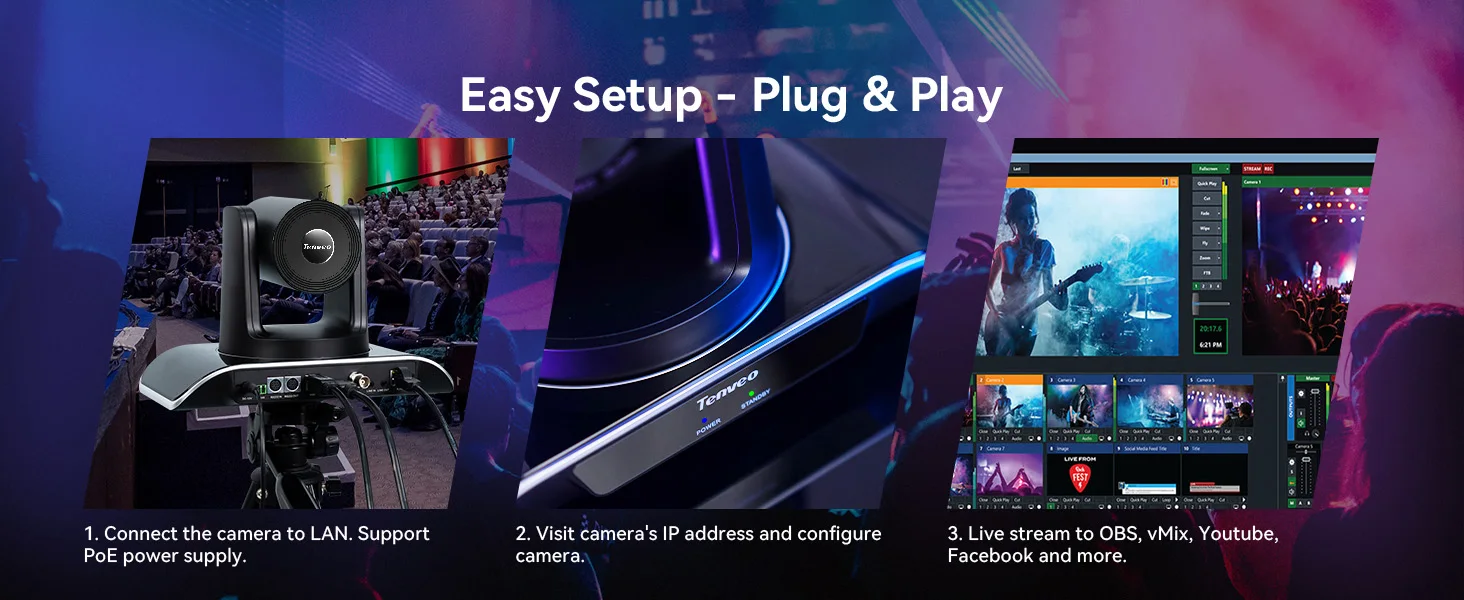

Easy Setup

1. Connect the camera to LAN. Support PoE power supply. 2. Visit camera's lP address and configure camera. 3. Live stream to OBS, vMix, Youtube, Facebook and more.

Smooth and Silent Pan/Tilt Movement with 2D and 3D Noise Reduction

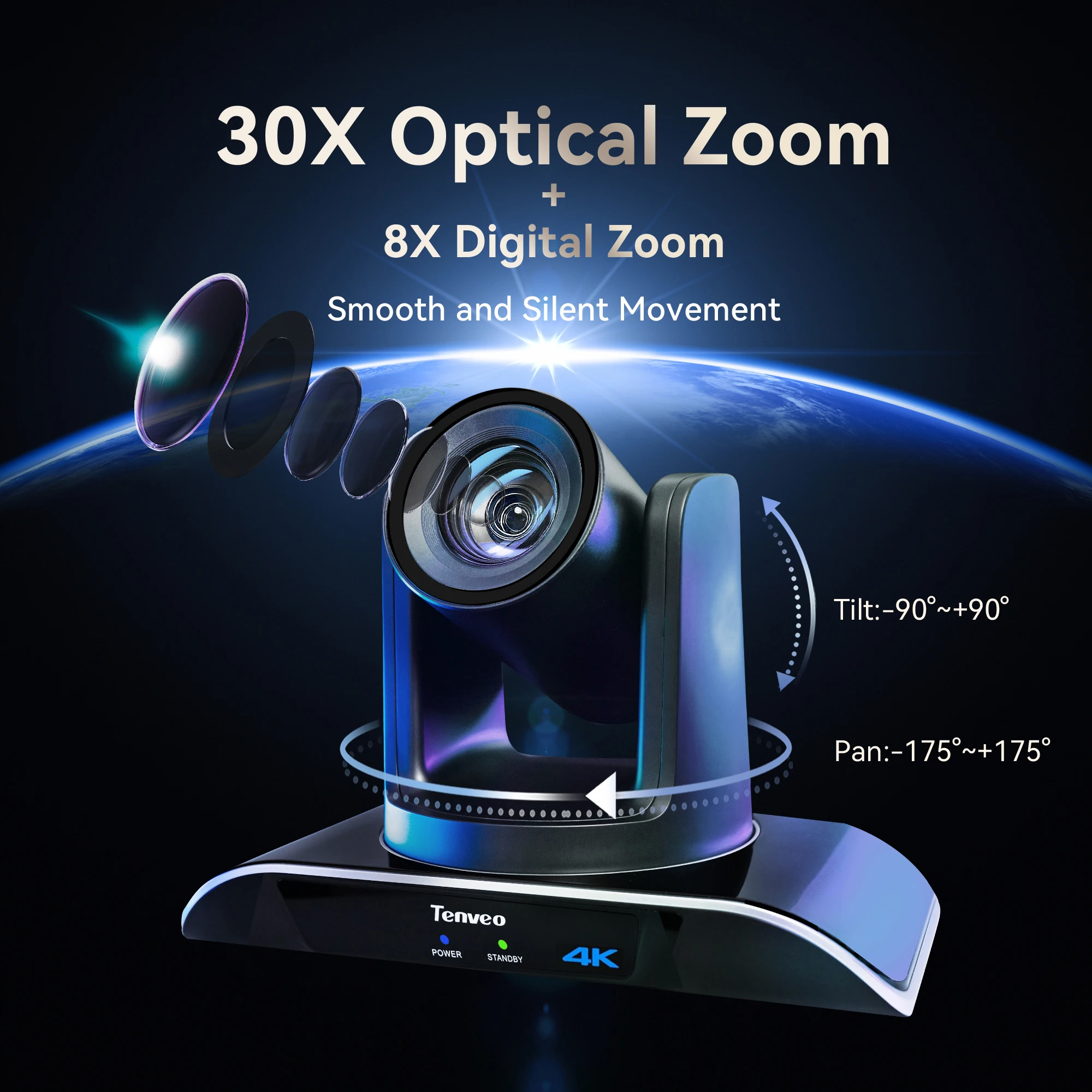

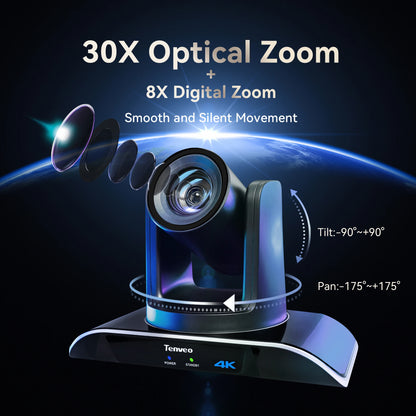

This PTZ Camera can be controlled remotely to rotate 350°(±175°) horizontally and 180°(±90°) vertically in an accurate, smooth and silent way. Combined with 2D and 3D noise reduction for a clear picture eveb under low light. It is available to set up to 255 presets via RS232 and RS485 interfaces for professional control. The convenient way could quickly control the PTZ camera pan, tilt, zoom, and move to the preset position for close-up sequence.

Technical Specifications

Model No.	VHD612A	VHD620A	VHD630A
Sensor	1/2.8''
Effective Pixels	2.07MP
Optical Zoom	12x optical zoom	20x optical zoom	30x optical zoom
Lens	f=4.2mm ~ 50.4mm	f=4.6mm ~ 92mm	f=4.6mm ~ 138mm
Aperture	F1.8 ~ F2.8	F1.8 ~ F3.6	F1.8 ~ F3.6
Horizontal Angle	70.2° ~ 6.52°	62.3° ~ 3.46°	63.7° ~ 3.28°
Vertical Angle	42.6° ~ 3.76°	36.1° ~ 1.92°	37.1° ~ 1.68°
Diagonal Angle	80.71° ~ 7.65°	69.5° ~ 3.86°	72.5° ~ 3.63°
Video Signals	1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080P59.94, 1080P50, 720P60, 720P59.94, 720P50
Digital Zoom	8X
Video Output	USB 3.0, HDMI, RJ45, SDI
Signal Standard	NTSC/PAL

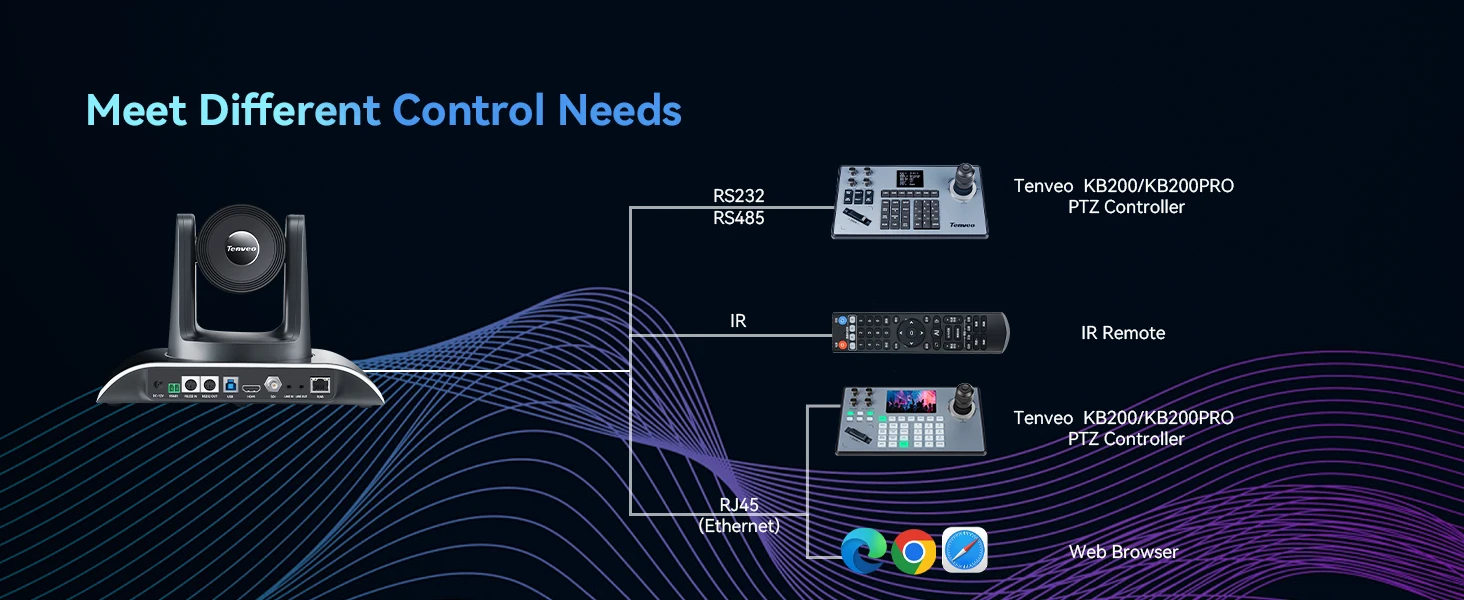

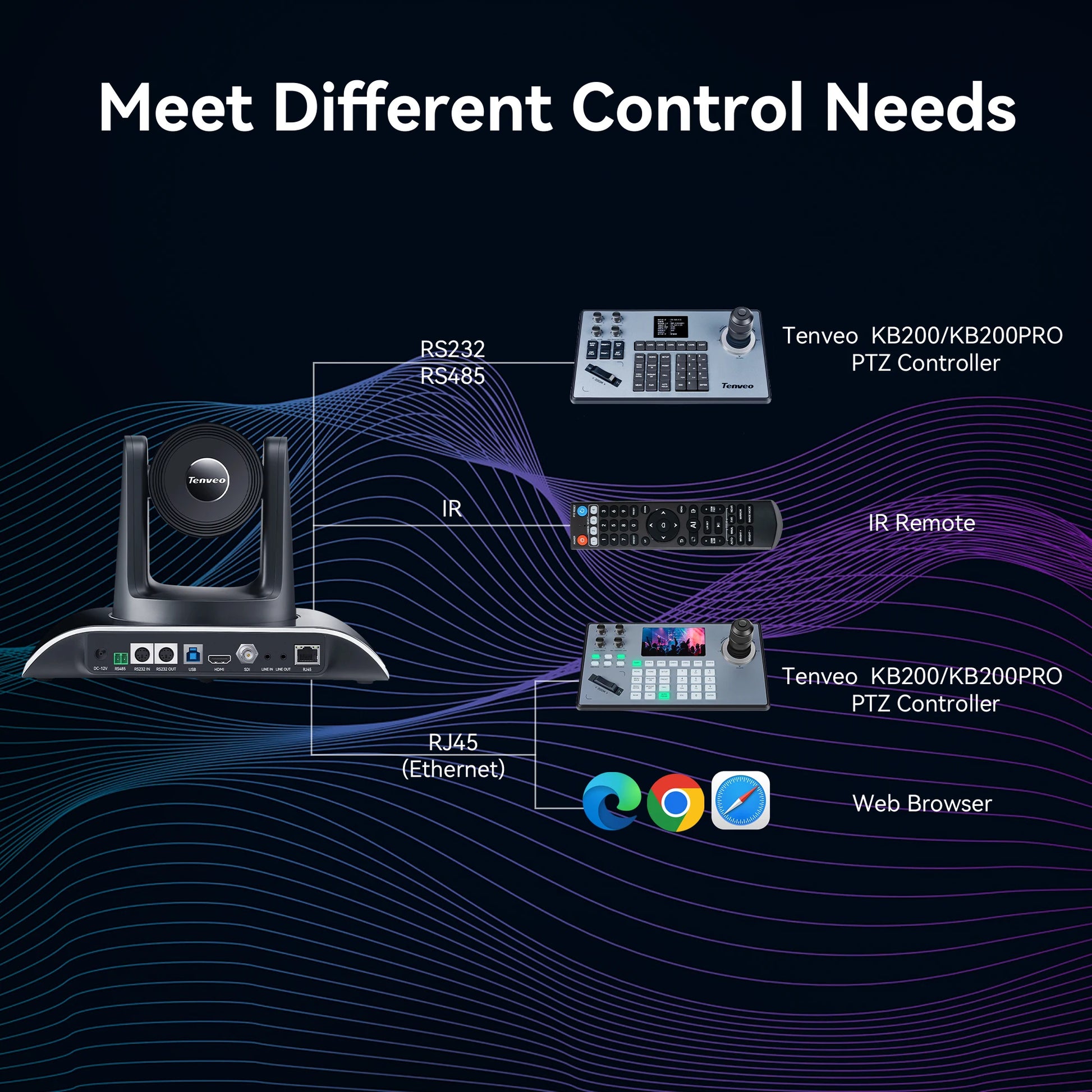

Control Interface	RS232, RS485, USB, NET
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Baud Rate	2400/4800/9600/19200/38400/57600/115200
Control Protocol	VISCA, Pelco-D, Pelco-P
USB Protocol	UVC 1.1
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
SNR	≥55dB
Horizontal Rotation	350° (±175°) 0.1°/s～100°/s
Vertical Rotation	180° (±90°) 0.1°/s～80°/s
H & V Flip	Support
Image Freeze	Support
PoE	Support
Number of Preset	255
Preset Accuracy	0.1°
IPC Features (IP Camera)
Video Encoding Format	H.264/H.265/MJPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080,1280x720,1024x576,etc.
Sub Stream Resolution	1280x720,1024x576,720x576,etc.
Video Bit Rate	32Kbps ~ 20480Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	1fps ~ 60fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Network Protocol	SRT,TCP/IP, HTTP, RTSP, RTMP(S), Onvif, DHCP, GB/T28181,Multicast; Support FULL ND
Input/Output Interface
HD Output	1xHDMI 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
LAN	1xRJ45:10M/100M Ethernet Interface
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
USB	1xUSB3.0: Type B female jack
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)
Generic Specification
Power Supply	DC 12V/2A
Power Consumption	18W
Work Temperature	0°C ~ 40°C
Work Humidity	20%～80% RH
Store Temperature	-20℃ to 60°C
Store Humidity	20%～90% RH
Product Size	247.1152169.6mm/285217197mm(before / after packing)
Product Weight	1.37kg/2.45kg (net / gross weight)

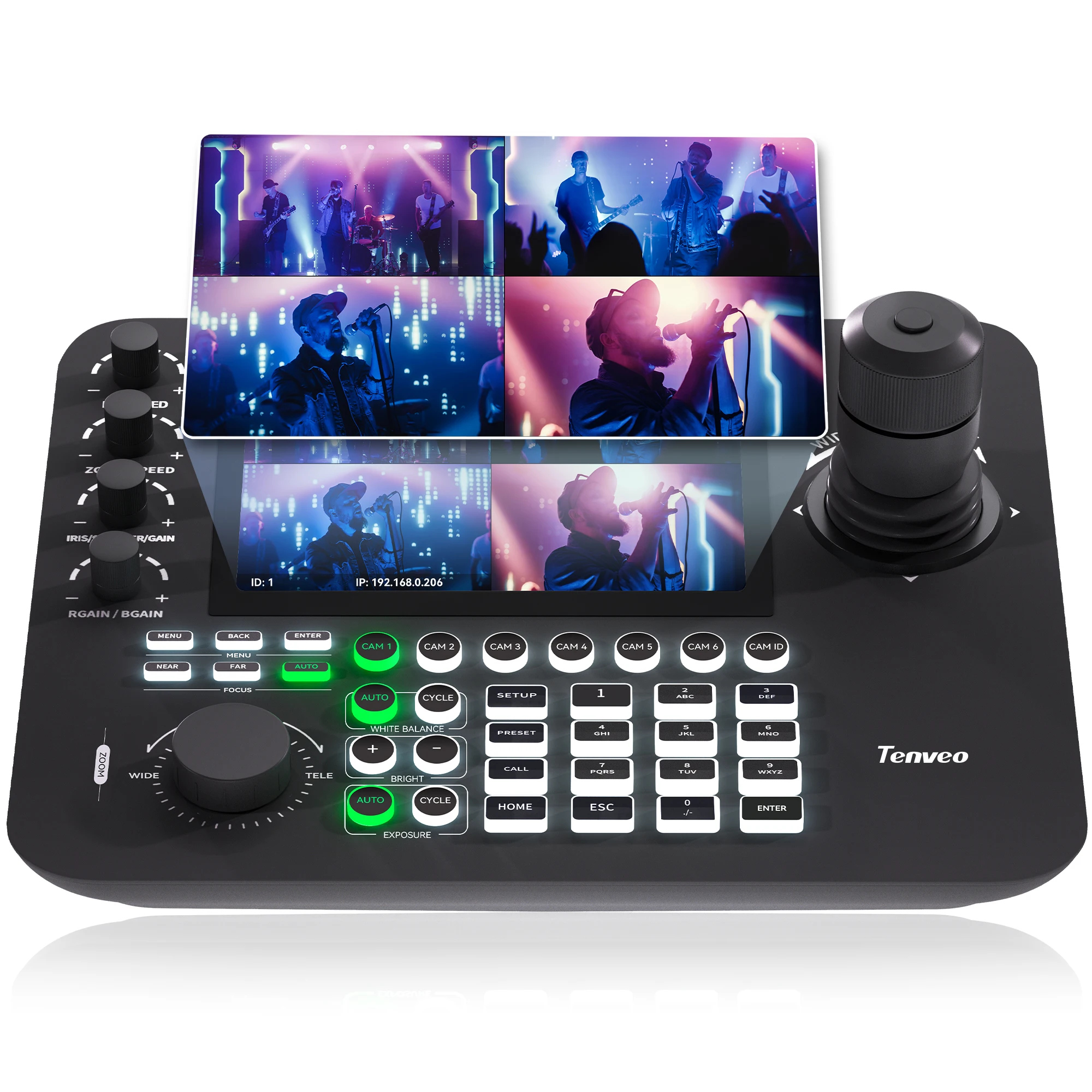

Product Name	PTZ joystick keyboard controller
Model No	KB300pro
CHIP	ssd202d
SYSTEM	Linux
Max equipment	256
Decoding	H.265, H.264
RESOLUTION	MAX 1080P for 1 channel:1920*1080@30fps

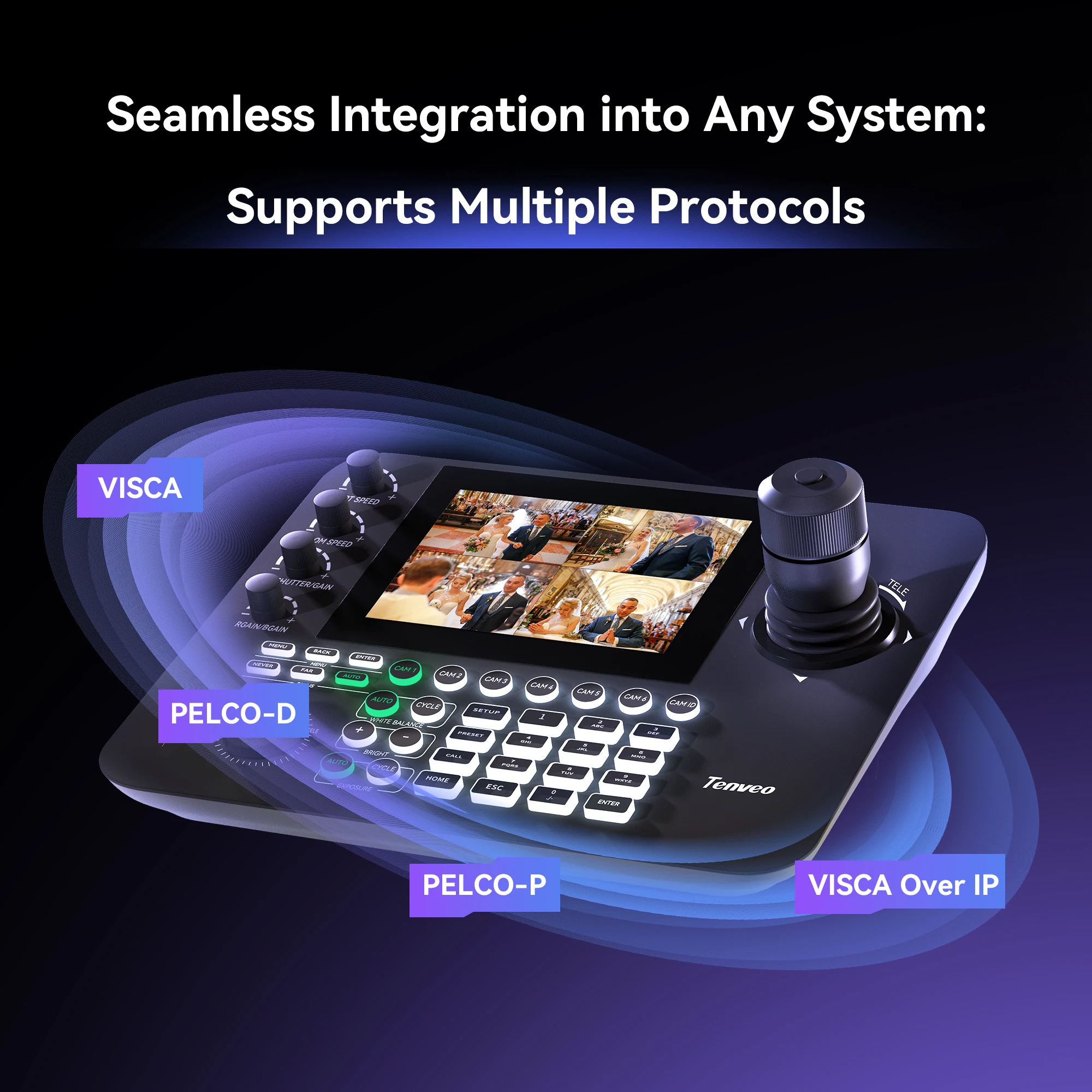

PROTOCOL	VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF
Camera Control	Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES

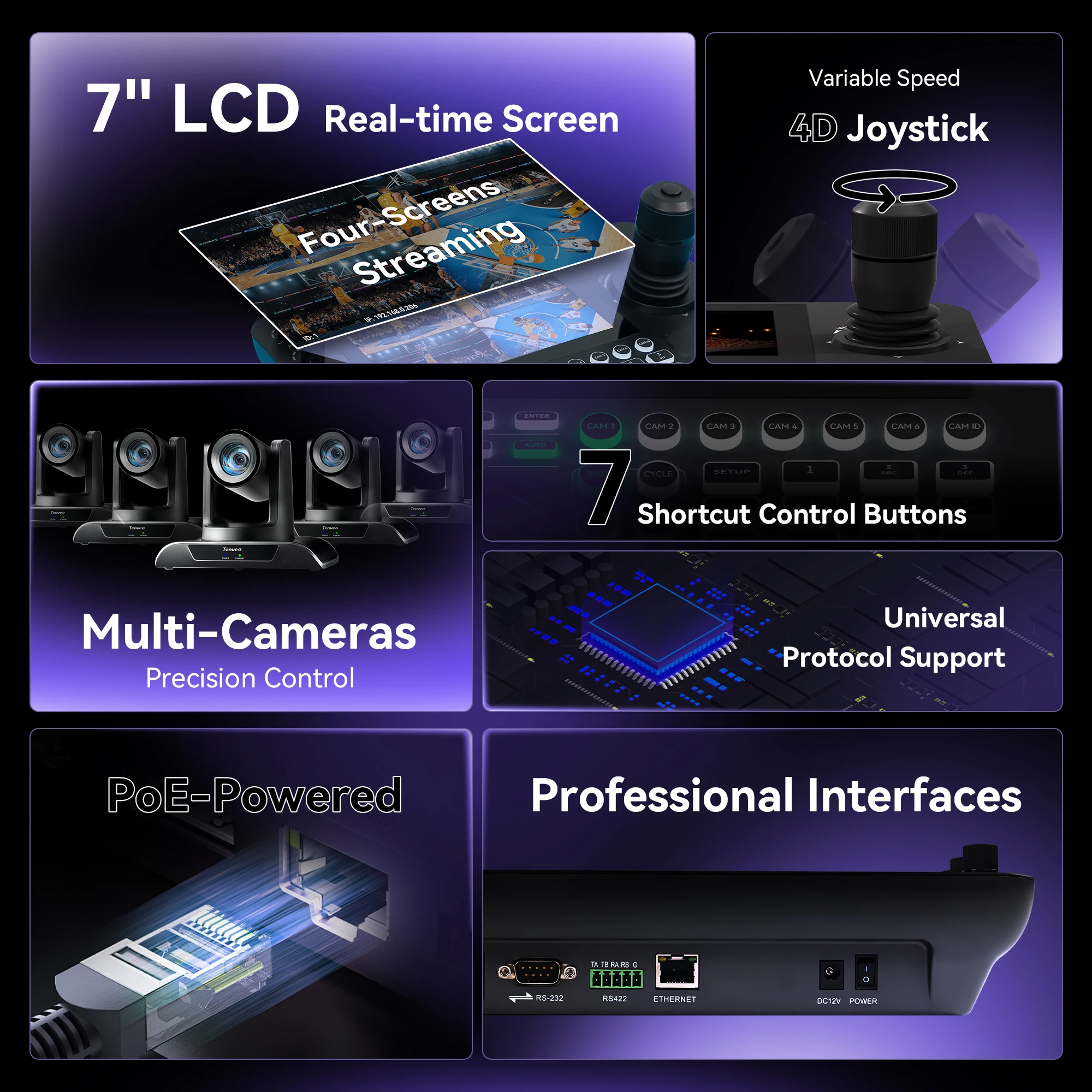

User Interfaces	Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6
Four-split display	Support

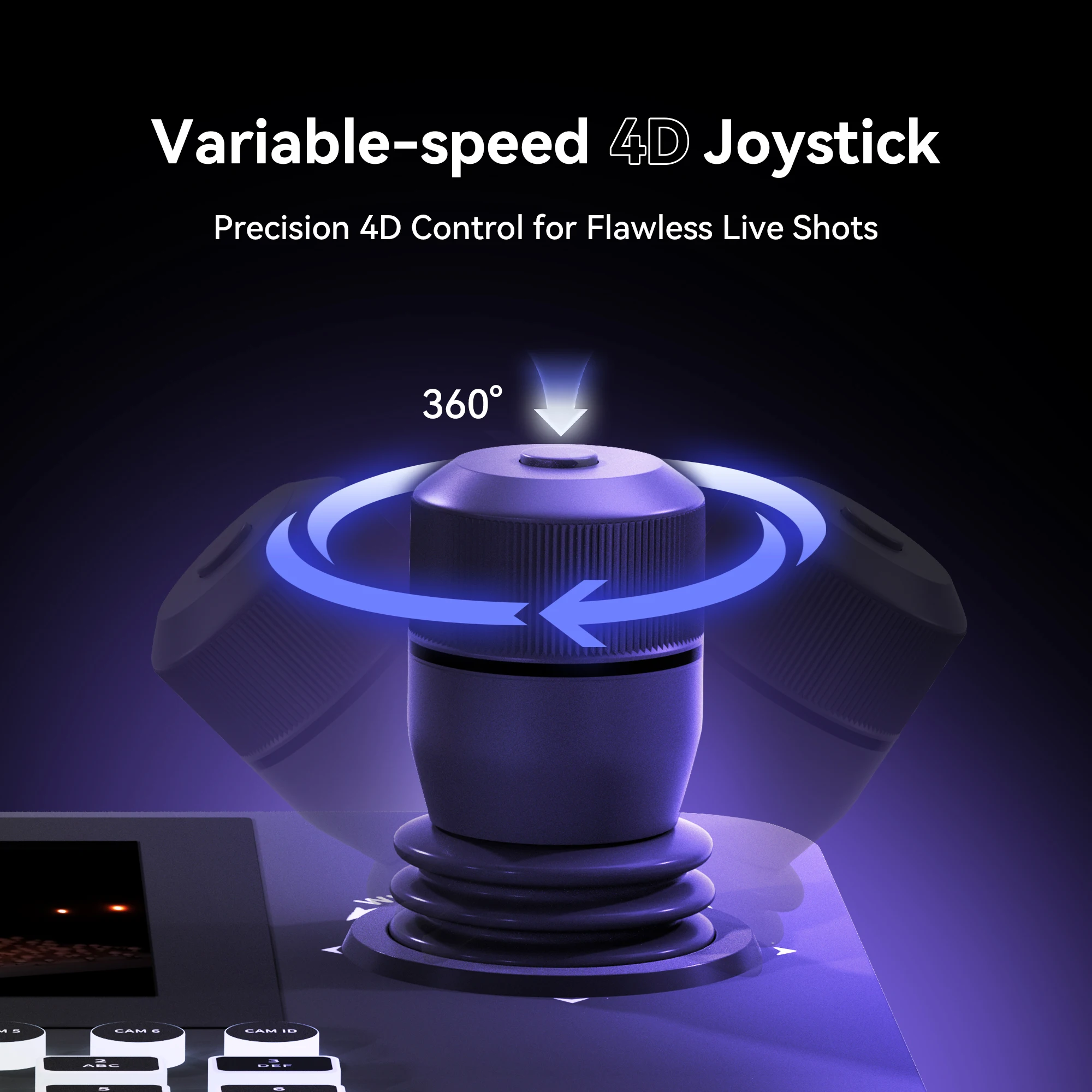

Joystick	4D

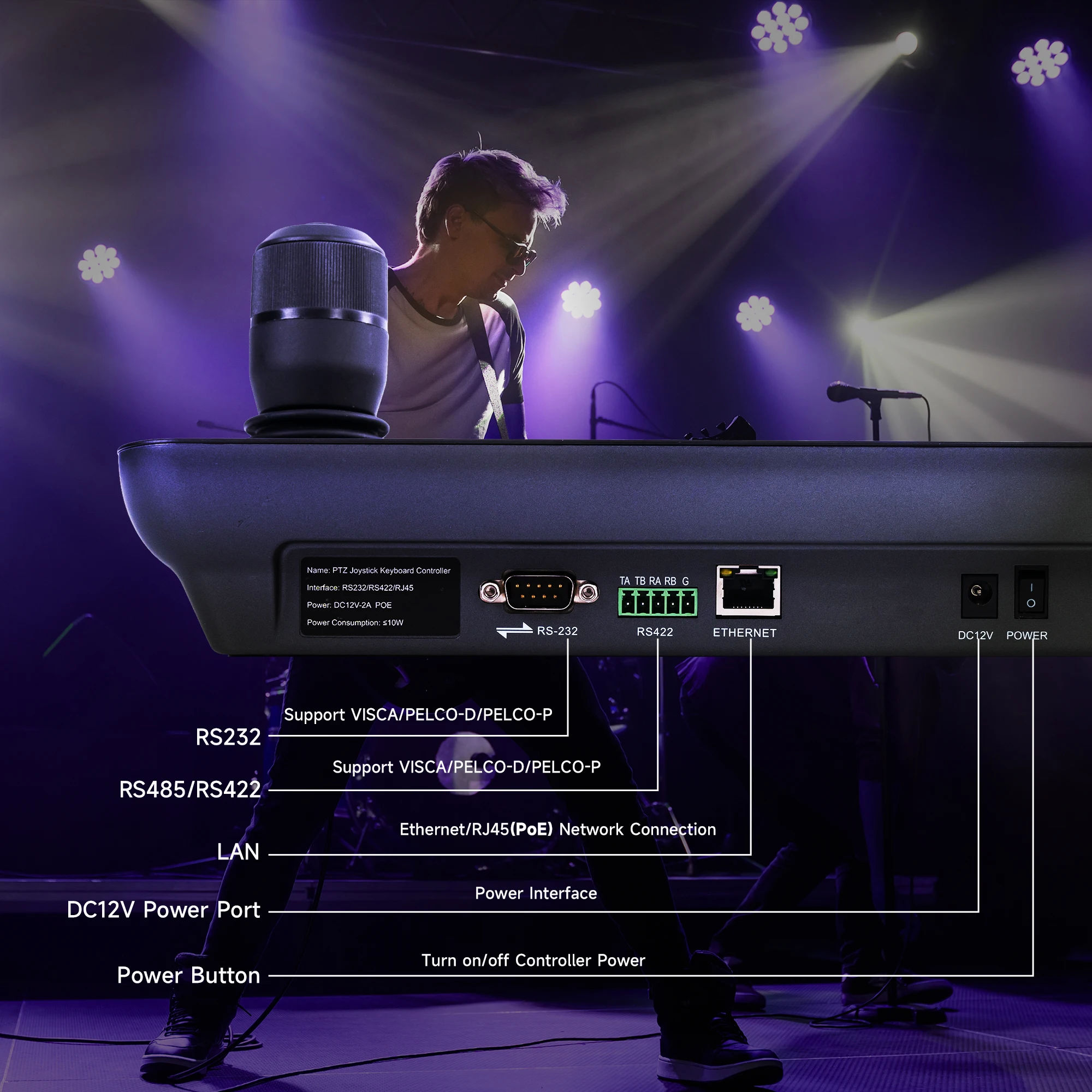

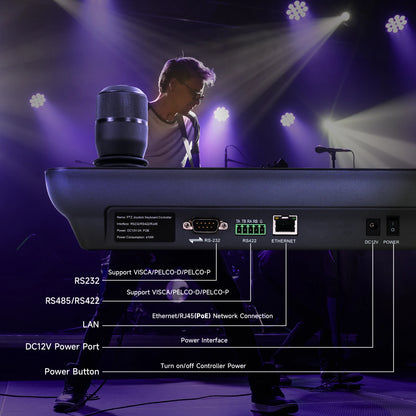

Output	RS422(Reserved), RS232(Development port), RJ45
Accessories	Knob, Silicone button
Beep	On/off

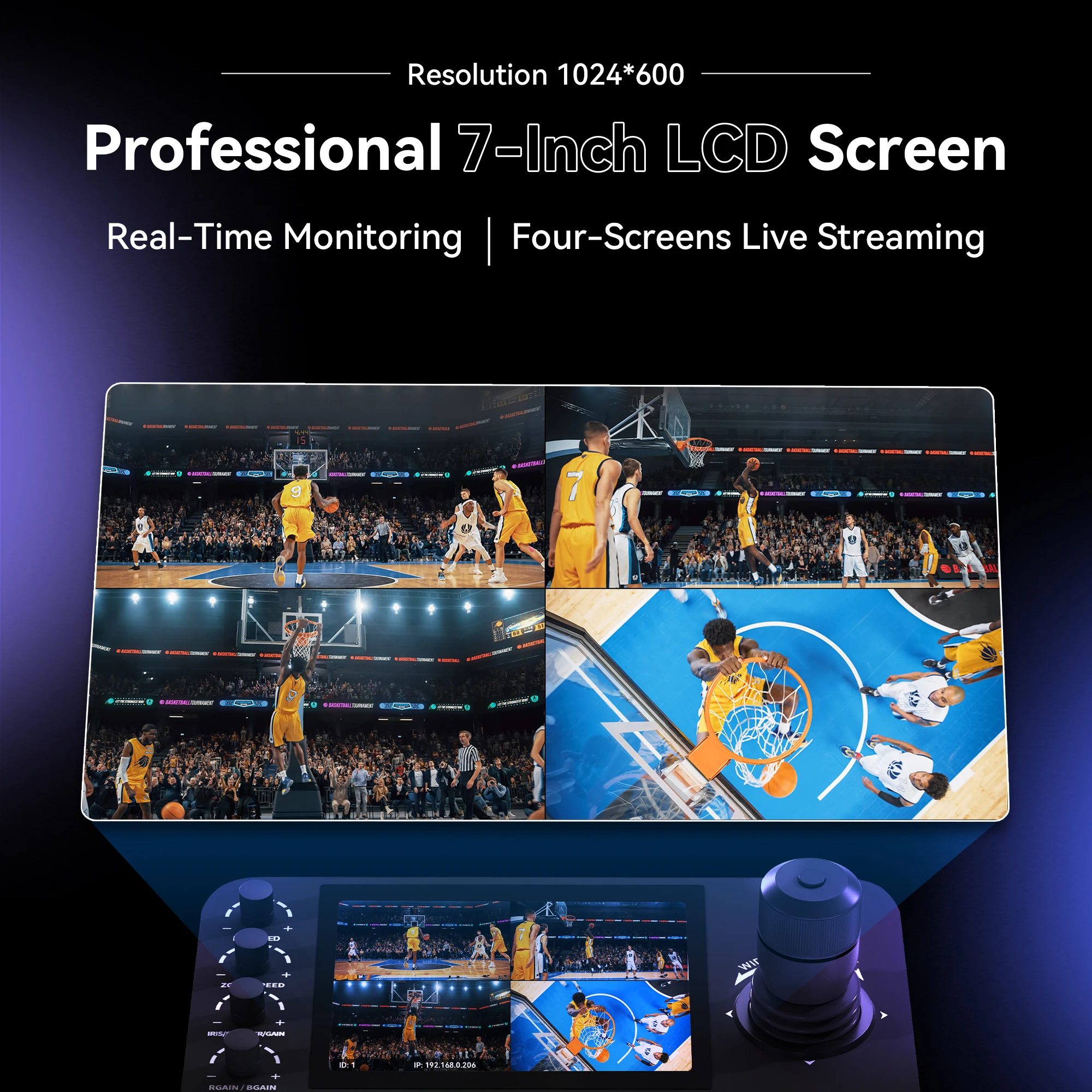

Display	*TFT LCD 7inches 6001024**
Max camera control	Max 256 with multiple protocols including NDI/IP
Split screen display	1 split screen/4 split screen
Power consumption	≤10W
POWER	DC12V-2A POE
Storage Condition
Work temperature	-10℃~55℃ / 14°F~131°F
Work humidity	20%~80%frostless
Storage temperature	-10℃~60℃ / 14°F~140°F
Storage humidity	0~90%frostless
Product Size	297mm * 210mm * 140mm
Product Weight	1.6kg

FAQ

Q1: Which kind of software does your camera compatible with?
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix,
etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3:What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 12X, 20x and 30x PTZ cameras for larger meeting rooms.
Q4:Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5 :What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q6:What is your warranty period?
A: The warranty period is 3 years
Q7:Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9:Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.

Our Certificates

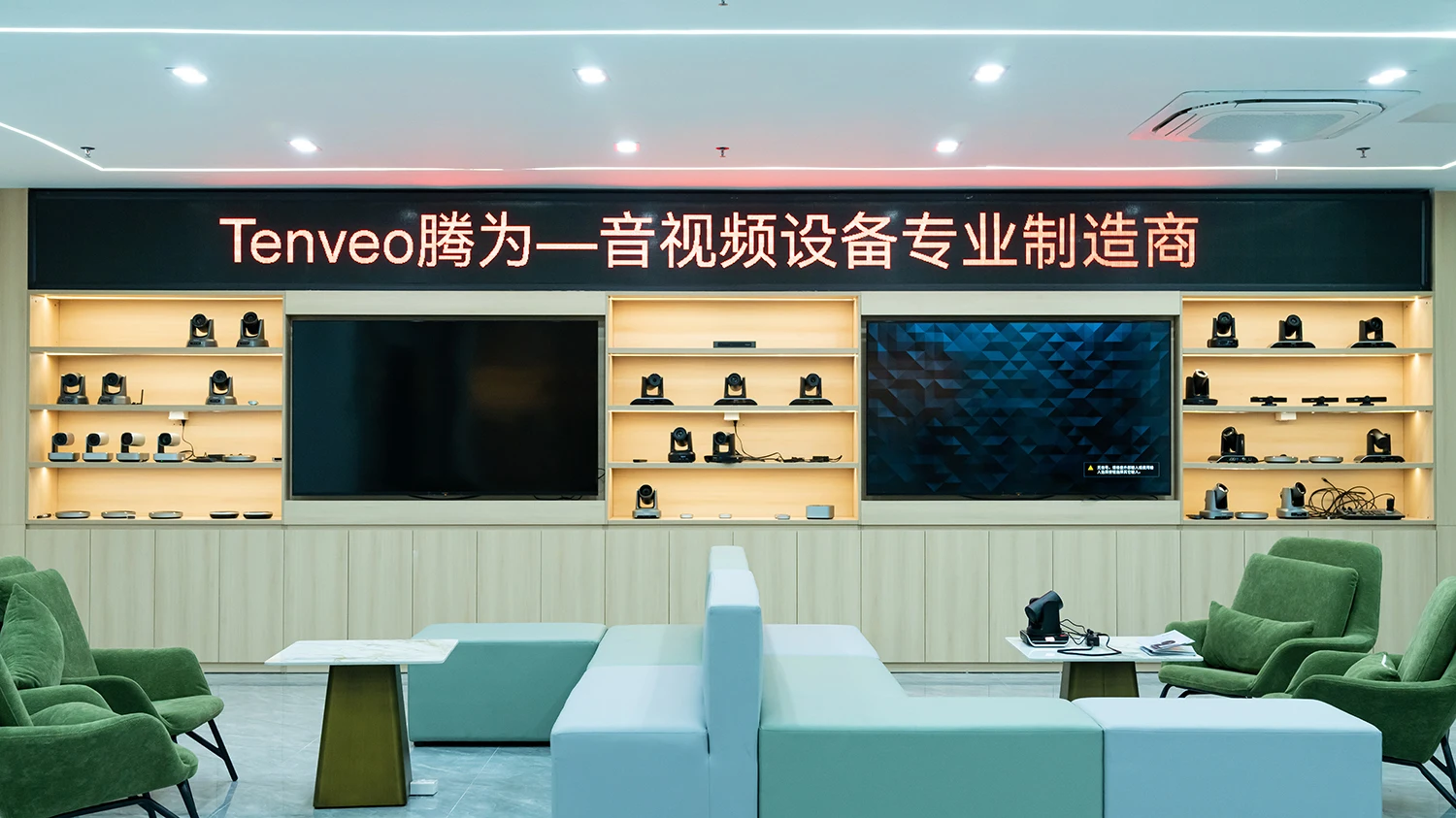

About Tenveo

Why Choose Us

*14 years of experience: Our company was founded in 2011 and has a history of 14 years.
* Fast Sample Delivery: We ship samples immediately upon payment confirmation.
* 3-Year Warranty: Our products come with a 3-year warranty, ensuring long-term reliability.
* Certified Quality: We hold CE, ROHS, CB, FCC, and ISO certifications, guaranteeing compliance with international standards.
* Strict Quality Control: Every video conference camera and speakerphone is rigorously inspected by our QS department before shipment.
* Efficient After-Sales Support: Our dedicated after-sales team ensures quick resolution of any issues.
